Turbotest®
- 2 Operating modes: manual, 3-speed
- Usable stroke: 250 mm / 10 in
- Head lift control: via touchscreen
- Available voltage: 220 V only
- Choice between 2 tool packages
From
$6.790,00 ex-tax
Documentation
Benefits of Turbotest® mixers

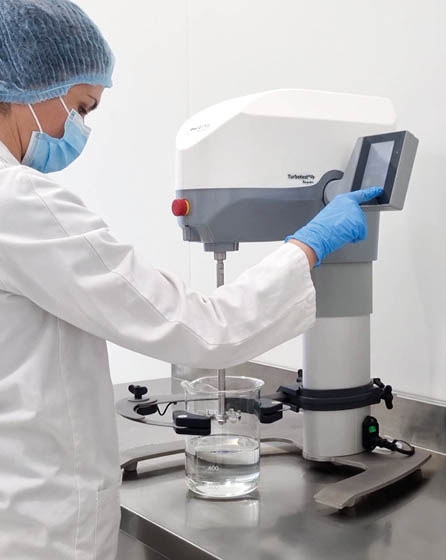

The Turbotest® bench-top homogenizer allows you to develop new formulations, optimize processes and analyze results.
- Wide range of container volumes
- Easily interchangeable tools and a wide range of additional turbines for more versatile formulations
- Ergonomic design for easy installation, setting, and cleaning
- Intuitive touchscreen interface
- 2 user modes for more versatility: manual and 3 speeds
- Rotation speed reaching up to 4000 rpm
- Saving of tool working position for increased accuracy
What are the main differences between the Turbotest® Up and the Turbotest®? See our FAQ!

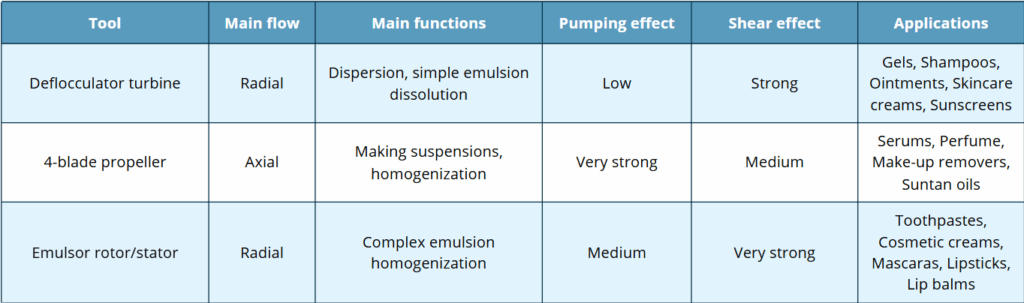

Discover our tool packages
The Starter Lab Package
This package comes with:

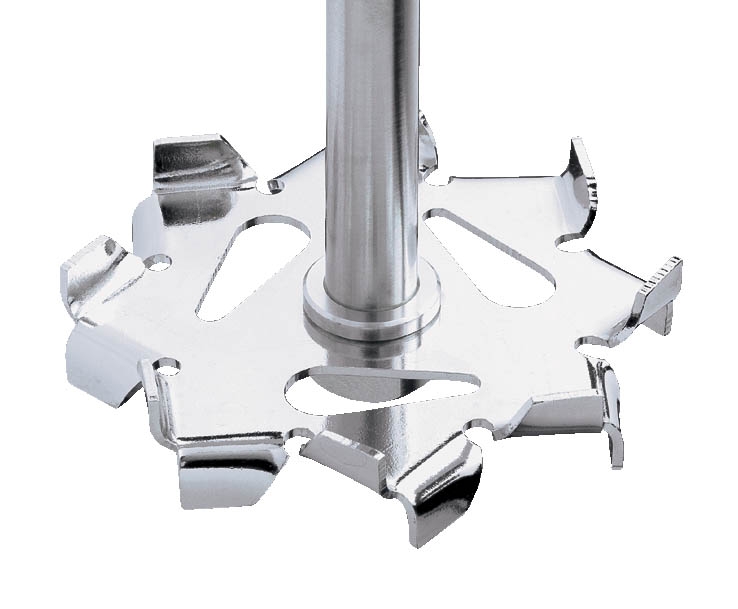

- a deflocculator turbine
- a 4-blade propeller

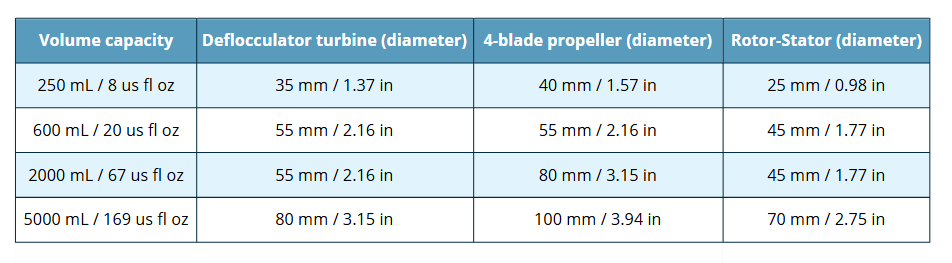

The tools’ dimensions may vary depending on the volume of the container (see table below).
The Master Lab Package
This package comes with:
- a deflocculator turbine
- a 4-blade propeller

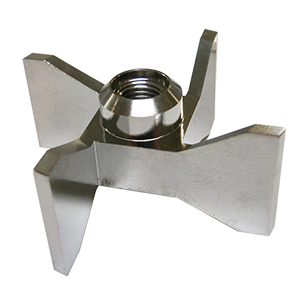

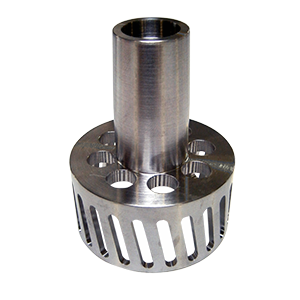

- a rotor-stator emulsor and a removal tool
The tools’ dimensions may vary depending on the volume of the container (see table below).
Main features
- Capacity: 025 to 20 L / 0.066 to 5.28 gal
- Useful stroke of the tool: 250 mm / 10 in
- Container diameter: 50 to 300mm/2 to 12 in
- Rotation speed reaching up to 4000 rpm

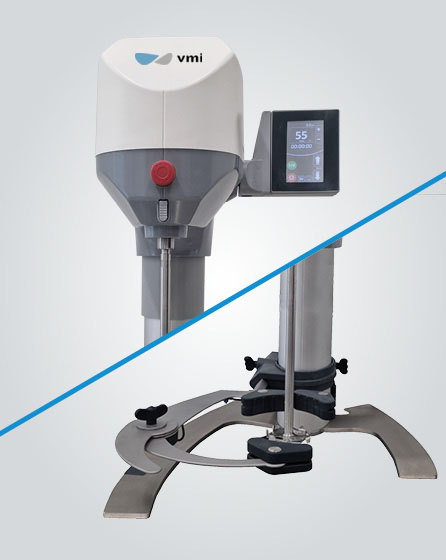

- Tiltable touchscreen interface. Display of speeds, times, torque
- Control of the lift via the HMI
- User modes:
- Manual mode to validate your formulations and set process parameters
- 3 speeds mode for a quick launch with saved key parameters
- Asymmetrical feet for better mixing area accessibility
- Silent electric head lift
- Beaker and tool position detection system
- Stainless steel beaker holder with removable silicone pads
- ABS housing, anodized aluminum column, 304L stainless steel feet
- 316 L/83 us gal lqd stainless steel shaft, with male cone, length: 310 mm/12.2 in
More information
| Electrical characteristics | Safety and regulations | Optional extras, to be ordered from VMI’s E-service |
| • 440 W DC motor • Power: 0.4 kW • Voltage: 220V – 50Hz (may vary depending on the electrical voltage of the country of delivery) • Supplied with a plug — plug type must be specified at the time of order confirmation | • 2006/42/CE directive • Operation prohibited if the agitator is in high position • Operation prohibited if running without beaker • Start-up at 50 rpm • Emergency stop During operation: • The turbine must be completely in the beaker • Do not use any utensil in the beaker while the tool is rotating • Do not put your hands in the beaker or touch the rotating parts • Do not hold the beaker in suspension during agitation | • Wide range of tools for agitation and mixing (turbines, propellers, emulsifier rotor/stator) • Digital temperature probe • Removable splash guard • Support to remove the turbines • Collapsible protective sleeve • Stainless steel shaft and turbines |

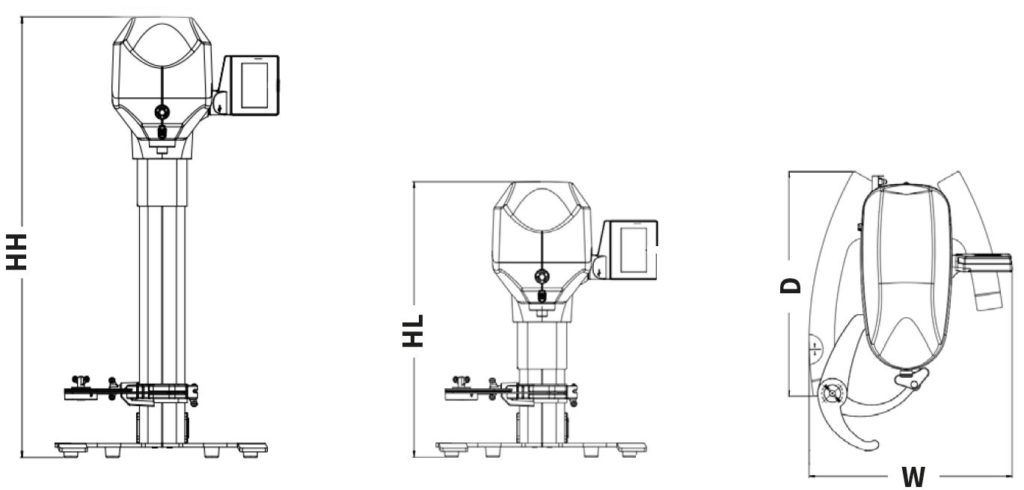

Dimensions and weight of Turbotest® mixers
| Type | Turbotest® |
|---|---|
| Dimension HH (high position) | 849 mm/ 33 in |
| Dimension HL (low position) | 599 mm/24 in |
| Dimension W (width) | 480 mm/19 in |
| Dimension D (depth) | 529 mm/21 in |
| Useful stroke of the tool | 250 mm/10 in |
| Weight | 26 kg/58 lbs – up to 70 kg/155 lbs with packaging |
