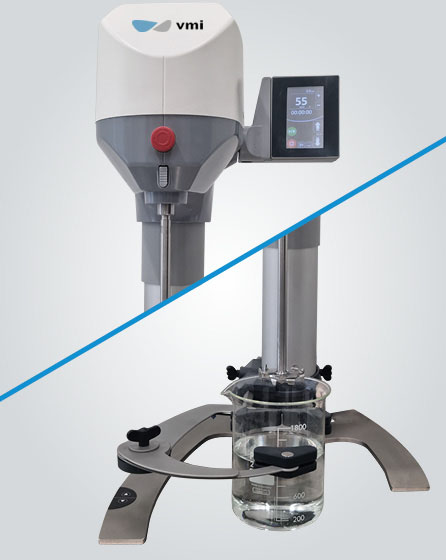

Turbotest® Up
- 3 operating modes: manual, 3 speeds, programmable
- Useful stroke: 350 mm / 14 in
- Head lift button on the base and touchscreen
- Mixing tool selection during formulation, with memory of working position
- Real-time display of process parameter curves and data export via USB stick
- Connectable temperature probe with data transmission to the HMI
- Available voltages: 100 V - 110 V - 220 V
- Choice between 2 tool packages
From
$7.930,00 ex-tax
Documentation
Benefits of Turbotest® Up mixers
The Turbotest® Up bench-top homogenizer allows you to develop new formulations, optimize processes and analyze results.
- Wide range of possible container volumes
- Variety of turbines for high formulation versatility
- Ergonomic design for easy setup, adjustment, and cleaning
- Intuitive touchscreen interface
- 3 operating modes: manual, 3-speed, and programmable
- Rotational speed up to 4000 rpm
- Reproducible process parameters for scale-up operations
- Ergonomic control with head lift button on the stand and touchscreen interface
- Process parameter traceability with real-time curve display and data export via USB
- Precise temperature control: connectable probe with data transmission to the HMI and alert system in case of setpoint overrun
What are the main differences between the Turbotest® Up and the Turbotest®? See our FAQ!
Discover our tool packages
The Starter Lab Package
This package comes with:
- a deflocculator turbine
- a 4-blade propeller
The tools’ dimensions may vary depending on the volume of the container (see table below).
The Master Lab Package
This package comes with:
- a deflocculator turbine
- a 4-blade propeller
- a rotor-stator emulsor with a removal tool
The tools’ dimensions may vary depending on the volume of the container (see table below).
Main features
- Capacity: 0.25 to 20 liters – 0.066 to 5.28 US gal
- Usable tool stroke: 350 mm / 13.78 in
- Container diameter: 50 to 300 mm / 2 to 12 in
- Rotational speed range up to 4000 rpm
- Tiltable touchscreen interface displaying speed, time, torque, temperature, and tool selection
- Head lift controlled via HMI and on the stand
- Operating modes:
- Manual mode – for testing and validating your parameters
- 3 speeds mode – for quick startup while retaining key parameters
- Programming mode – up to 100 recipes with 20 steps each
- Asymmetrical base for improved access to the mixing area
- Silent electric head lifting system
- Beaker and tool position detection system
- Stainless steel beaker holder with removable silicone pads for safety
- ABS casing, anodized aluminum column, 304L stainless steel feet
- 316L stainless steel shaft with male cone, length 310 mm / 12.2 in
- Connectable temperature probe with data feedback to the HMI; support included
More information
| Electrical characteristics | Safety and regulations | Optional extras, to be ordered from VMI’s E-Service |
| • 440 W DC motor • Power: 0.4 kW • Voltage: 110/220V – 60/50Hz (may vary depending on the electrical voltage of the country of delivery) • Supplied with a plug — plug type must be specified at the time of order confirmation | • 2006/42/CE directive • Operation prohibited if the agitator is in high position • Operation prohibited if running without beaker • Start-up at 50 rpm • Emergency stop During operation: • The turbine must be completely in the beaker • Do not use any utensil in the beaker while the tool is rotating • Do not put your hands in the beaker or touch the rotating parts • Do not hold the beaker in suspension during agitation | • Wide range of tools for agitation and mixing (turbines, propellers, emulsifier rotor/stator) • Removable splash guard • Support to remove the turbines • Collapsible protective sleeve • Stainless steel shaft and turbines |
Dimensions and weight of Turbotest® Up mixers
| Type | Turbotest® Up |
|---|---|
| Dimension HH (high position) | 949 mm/ 37 in |
| Dimension HL (low position) | 599 mm/24 in |
| Dimension W (width) | 480 mm/19 in |
| Dimension D (depth) | 529 mm/21 in |
| Useful stroke of the tool | 350 mm/14 in |
| Weight | 26 kg/58 lbs – up to 70 kg/155 lbs with packaging |
